Ambient Chamber

Challenge

The client had work around a current shop floor testing operation, with good communication, MTCSS implemented robust milestones and timelines to not impact the site operations.

Solution

MTCSS delivered a fully bespoke ambient storage facility designed to operate reliably between 12–35°C, using high-performance 100mm Kingspan IPN QuadCore insulated panels to ensure exceptional thermal stability, air tightness, and hygienic performance.

  • 21600mm x 4850mm x 4500mm (W x D x H) – 438m³
  • Temperature required: 12/35°C
  • 100mm Kingspan IPN QuadCore wall & ceiling panels
    • White food-safe internal/external finish
  • Doors:

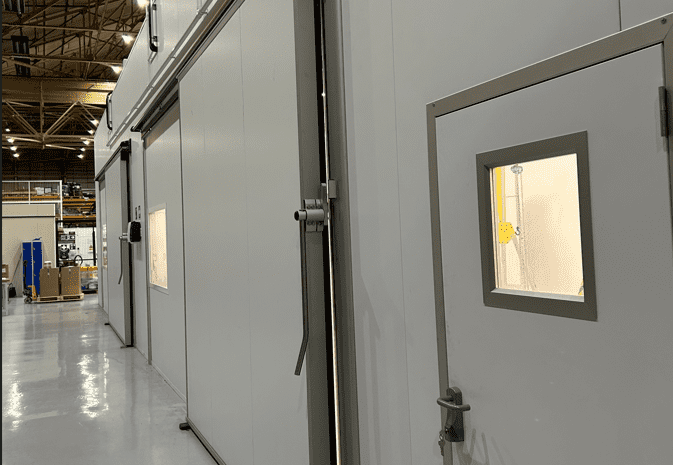

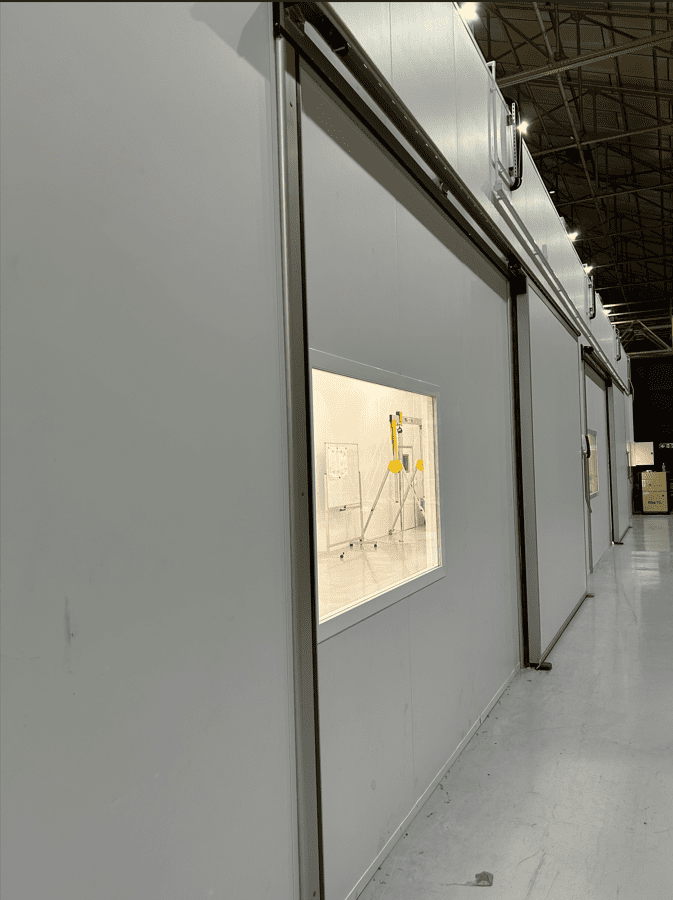

    • 2 x 3000mm x 3000mm sliding doors

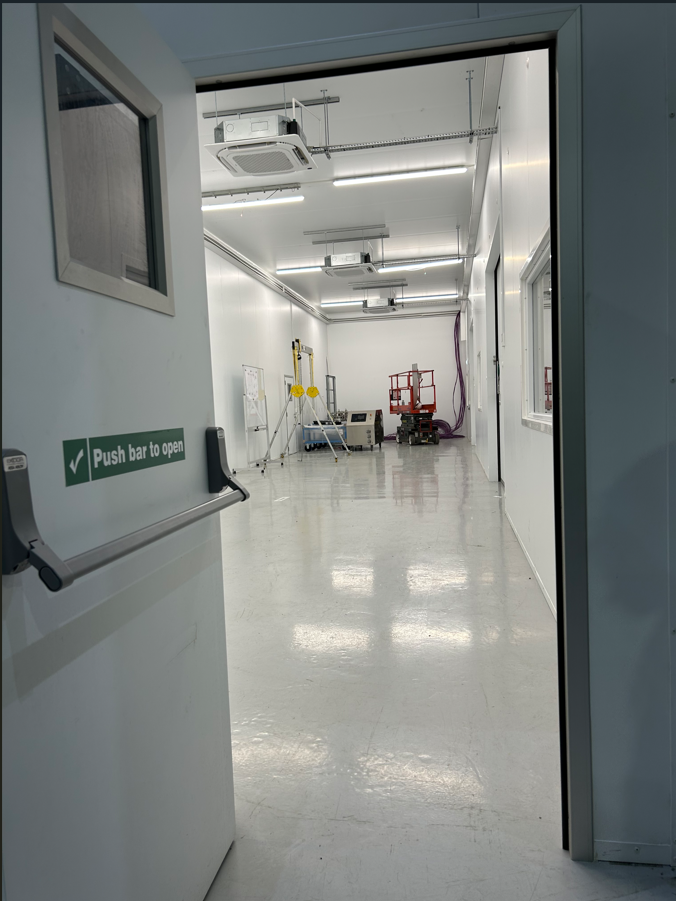

    • 3 x 900mm x 2000mm hinged MTH doors (all with vision panels; 2 with emergency exit bars)
  • Windows:

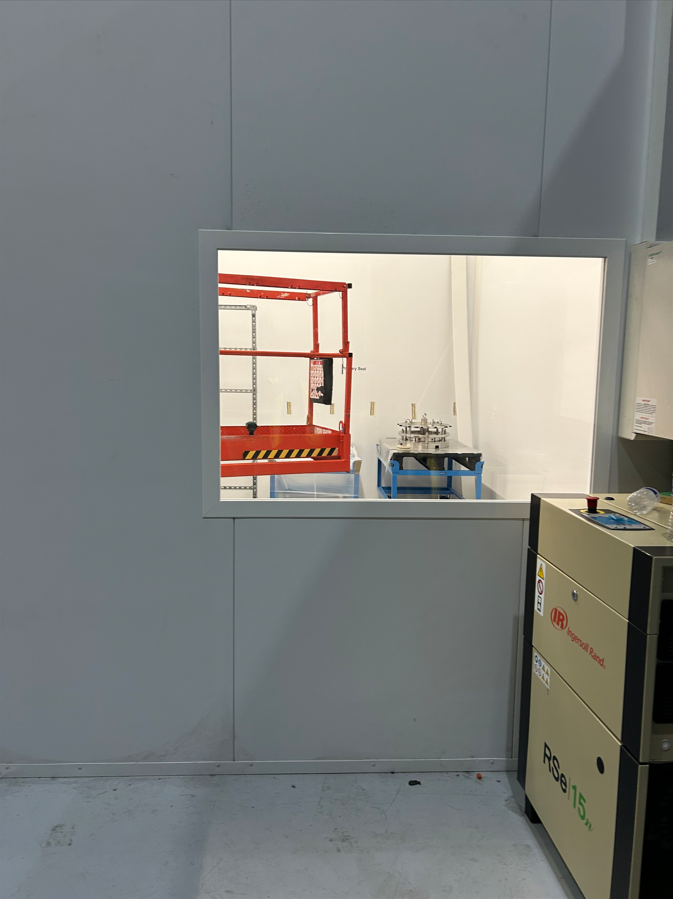

    • 3 x 1000mm x 1500mm dual-glazed, white powder-coated aluminium
  • Refrigeration:
    • Midea R32 split system – 3 x outdoor units + 3 x ceiling cassette units
  • Dehumidification:
    • Condair DA1400 (3-phase)
  • Lighting:
    • 8 x Titan Tri-Proof LEDs + emergency lighting system

Implementation

  • Design and full installation
  • Energy-efficient panel systems
  • Completed in 2 weeks

Outcome

Customer was able to continue it’s bussines operations without interruptions during the construction of the ambient chamber.
