Chiller Cold Room & Ambient Room for Pharmaceutical Storage
Dual Compartment Temperature-Controlled Rooms for Pharmaceuticals
Pharmaceutical products must be stored at specific temperatures to protect their integrity. Therefore, choosing a cold room company you can trust to design and build pharmaceutical temperature-controlled rooms to ensure there is minimal fluctuation of internal conditions is vital – this is where MTCSS comes in.
One of our clients required a temperature-controlled solution to enable them to store pharmaceutical products at two different temperatures – +20Deg C and +4Deg C. MTCSS proposed a dual compartment cold room with a chiller cold room compartment and an ambient temperature-controlled compartment.
Chiller Cold Room

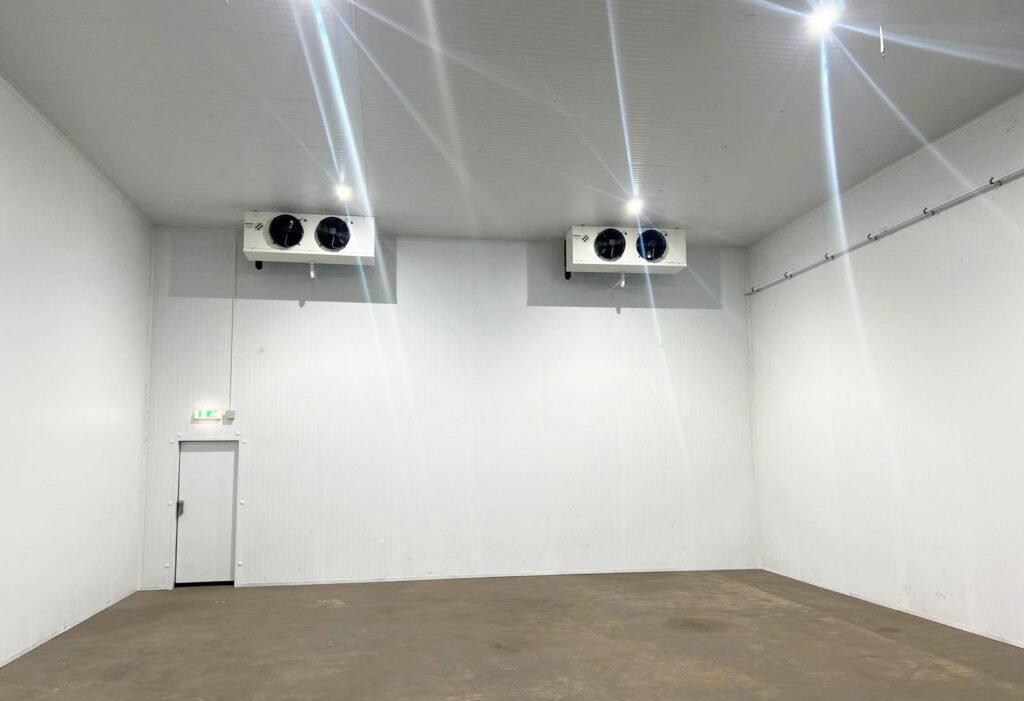

The chiller cold room compartment – also referred to as a walk-in fridge – was 9m x 13m x 5m with a 566m³ capacity.The cold room had two access points: one 3m x 3m sliding cold room door for pallet access, and one hinged cold room door for personnel and emergency access / egress.
The chiller cold room maintained temperatures of +4°C with a maximum fluctuation of 2°C either side. The MTCSS team designed and installed four split refrigeration systems, ensuring enough duty to refrigerate the cold room, and offering 100% back up in the event of a unit failure.
The refrigeration systems were linked via a switch-over panel, meaning they would switch over working to refrigerate the room for even use across the units. To adhere to F-gas regulations and to reduce environmental impact, the refrigeration systems used R449A which have a GWP of 1397 – a 64% reduction compared to the previously used R404A.
Above: Cold room installation in progress
Ambient Temperature-Controlled Room
The ambient temperature-controlled compartment was 13m x 13m x 5m with a capacity of 842m³. The ambient compartment was also fitted with the same sliding cold room door and insulated hinged door as the chiller compartment.

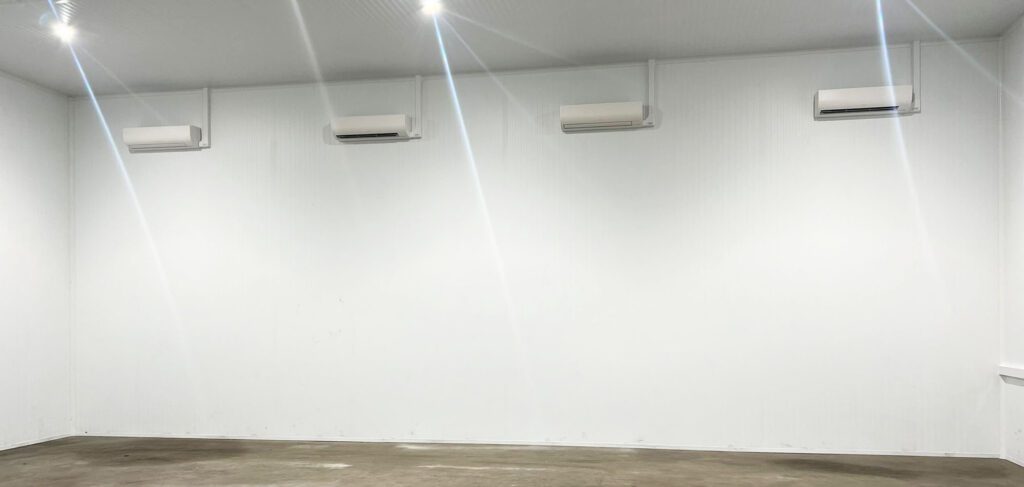

Similarly to the chiller cold room, the air conditioning system was installed to maintain the temperature of +20°C, with a maximum fluctuation of 2°C either side, and was also installed with a switch-over panel for even wear.
Cold Room Panels
The dual compartment cold room was designed and built from quadcore hybrid insulation cold room panels – the wall panels were 100mm thickness and ceiling 125mm thickness due to the span of the cold room.
The cold room panels selected can achieve a Green Guide A+ rating as per the BRE Global “The Green Guide to Specification”.
On cold room panels 100mm thickness and above (as used in this project) the panels are specified to:
• LPCB certified to LPS 1208: Wall & Ceilings
• FM Approved to FMRC 4880, 4881, 4882 Class 1 Fire Classification
Cold Room Doors
MTCSS supplied and installed four cold room doors in total – two sliding cold room doors and two hinged cold rooms. The cold room doors selected were designed specifically for cold and chilled storage applications and offer the benefits of withstanding high pressure washing and regular cleaning.
Above. External refrigeration systems
Cold Room Lighting
Both compartments of the cold room were fitted with Chil-LED lighting – specifically designed for temperature-controlled rooms to reduce heat gain – and emergency lighting for safety and accessibility.
MTCSS successfully completed the project within the required deadlines, supplying and installing the dual compartment cold room to the client’s timelines and requirements. If you’re looking for a pharmaceutical cold room, or a cold room supplier – get in touch with the MTCSS team! Call us on 01886 83338, email us at sales@mtcss.flywheelsites.com, or fill in an enquiry form below!
