Chiller Cold Rooms and Ambient Room for Pharmaceutical Storage in Bedfordshire
Chiller Cold Rooms and Multi-Compartment Ambient Rooms
At MTCSS we understand the importance of having high-quality cold storage for the pharmaceutical and medical industry. This industry requires cold room solutions to ensure products stored are consistently protected and adhere to specific health and safety regulations and procedures.
One of our customer’s in Bedfordshire required a cold storage solution to store their pharmaceutical products at various temperatures, with the ability move pallets of products in and out of the cold room. MTCSS also had the challenge of creating a solution for a moveable wall in one of the compartments.
MTCSS supplied and installed 2no chiller cold rooms, built from 80mm Kingspan Quadcore panels to offer the highest quality insulation for the application. The cold room panels selected were food safe and easy to clean, making them the ideal solution for pharmaceutical storage.
The chiller cold rooms were installed with hinged cold room doors in each room to allow for pallet access. To achieve the temperature ranges required, our team supplied and installed 2no split refrigeration systems to maintain temperatures of two degrees.
In addition to the chiller cold rooms, the MTCSS team carried out various room modifications to form 1no ambient temperature controlled room and triple compartment ambient room, with 1no moveable wall built from 50mm insulated panel.
Within the existing space, MTCSS built a front wall from cold room panel, then installed 3no dividing walls to form 4no compartments. Ceiling panels were installed over 1no compartment to form a fully insulated room to create the ambient temperature controlled room.
The moveable wall allowed the customer to increase or reduce the internal space in the ambient area to accommodate the difference in product intake at different periods throughout the years. The moveable wall was operated using dolly wheels and brakes, allowing for ease of movement when required.

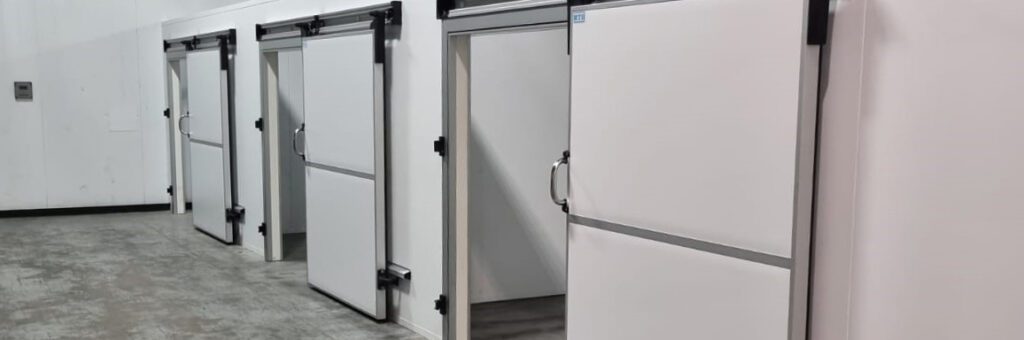

The 3no non-temperature controlled ambient compartments were installed with insulated sliding doors for each compartment and the fully enclosed ambient temperature controlled room was fitted with 1no hinged door.
The temperature controlled compartment was required to maintain a temperature of +20 degrees. MTCSS installed a HVAC system, controlled via an RDM Mercury controller, to achieve these conditions.

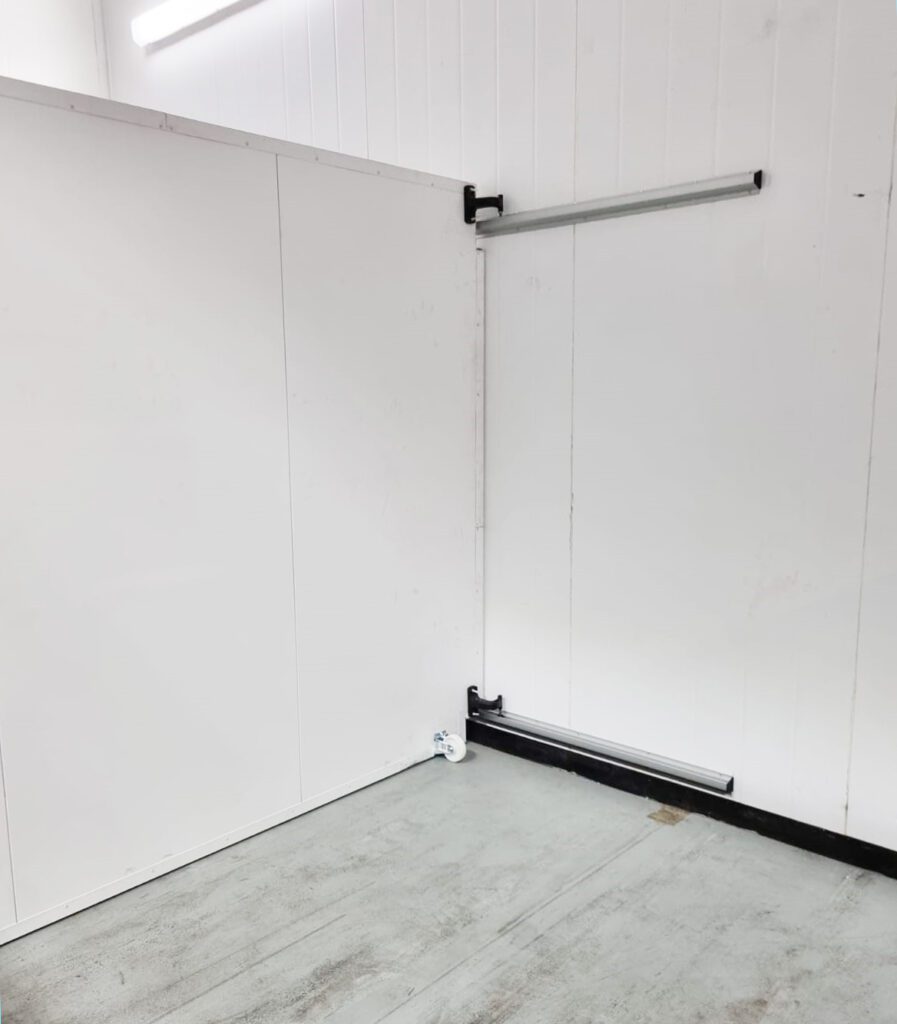

Above. The moveable wall panel system
Whilst on site, MTCSS removed existing strip curtains fitted to the cold room doors and replaced them with insulated Tempro curtains. This was to ensure the cold rooms internal temperature was maintained when the cold room doors were open to allow for forklift access. Insulated curtains offer increased insulating properties over standard PVC curtains, ensuring internal temperatures are better maintained and products are better protected.
If you’re in the pharmaceutical or medical industry and are looking for either a temperature-controlled storage solution or an industrial cold room solution, you can be assured MTCSS will work alongside you to design an efficient cold storage system to suit your requirements.
Whether it be for an ambient, chiller or freezer room, MTCSS have the solution for you! To find out more or ask us any questions you may have, please get in contact with us by calling 01886 833381, emailing us at sales@mtcss.flywheelsites.com or filling in an enquiry form here!
