Cold Rooms and Temperature Controlled Solutions for Farm Shop

Watermoor Meats, trading as Jesse Smiths Butchers, have been serving quality meat to the Gloucestershire community, and beyond, since 1808, from one and now five shops. When farmer turned butcher Richard Hawes bought the business in 1956 he wanted to take things further. With his twin sons John and David sharing the running of Watermoor Meats, Richard could see the time was ripe for expansion – with expansion comes the need for new cold storage. The recent opening of a new facility which includes farm shop, deli, café, cutting plant and distribution centre serving restaurants, farm shops and cafes across the country with quality meat, is the result of months of hard work and significant investment.

Such specialist facilities require specialists in their own field to build and advise. From cold rooms and offices, to food counters and café with walled terrace, Watermoor Meats have been able to realise their build vision with the input of specialists.

Working together in partnership, J&M Refrigeration and MT Cold Storage Solutions (MTCSS) are respectively engineers experienced in commercial refrigeration, specialist project management and cold rooms, cold room panels and cold room doors.

Together MTCSS and J&M Refrigeration designed and build a range of temperature controlled solutions – providing a full turnkey solution encompassing cold rooms, refrigeration systems, refrigerated display cabinets, sliding meat rails, cold room doors, and more! Our teams advised on and achieved complete satisfaction for the customer, taking the 10,000 square feet site from a warehouse shell to a progressive facility that includes retail and meat storage with extensive management and office capabilities all over two floors.

Walk-In Fridges, Walk-In Freezers and Cold Storage Solutions by MTCSS

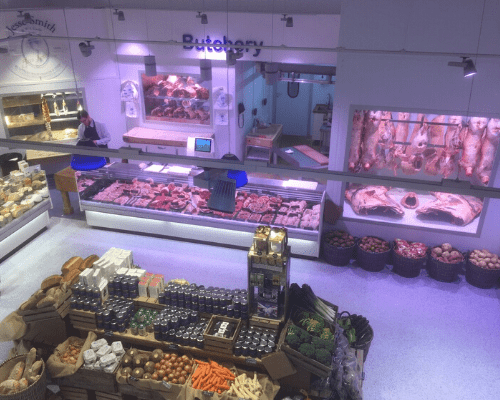

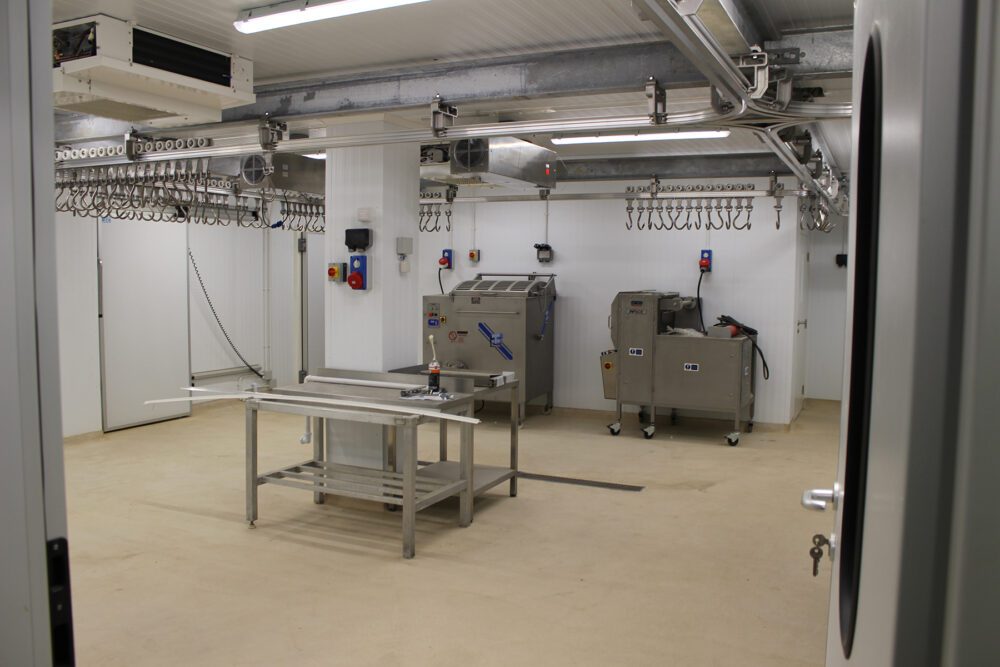

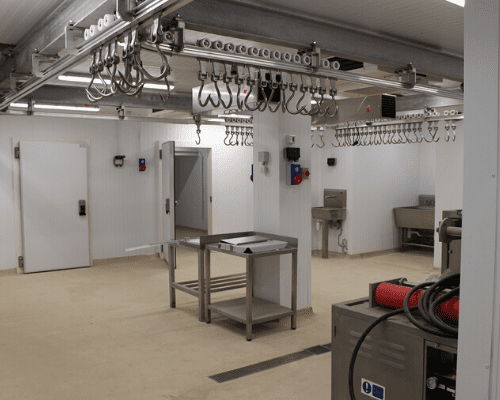

MTCSS supplied and installed: seven cold rooms, two walk-in freezers, ten office and staff/storage rooms, as well as a state of the art ‘shop window’ to display the fresh meat in a nod to the butchers’ history; a trade kitchen, delivery and despatch area, animal storage and preparation areas. The cold room installation not only required 400 square metres of cold room panel from MTCSS, but the specification needed to meet all legal hygiene and food preparation standards, as well as Watermoor Meats’ budget parameters.

Based in rural Worcestershire, MTCSS offers a range of cold room solutions, industrial doors, cold room maintenance, refrigerated cabinet refurbishment, and spares supplies for a range of temperature controlled solutions. We aim to bring our customers the very best solutions to meet their needs and to work professionally and efficiently.

Our customers include farmers and growers, supermarkets, refrigeration contractors, maintenance companies and food manufacturers, including major dairies.

Richard Hawes, Jesse Smith Butchers

Our vision was to achieve a high specification site to fit the needs and profile of customers here in rural Gloucestershire. We believe that J&M and MTCSS have more than achieved that for us, for both front of house and behind the scenes.

Fittings such as Smeva counters display and store our meats to perfection, they have developed and installed a data management system for temperature control, and UV disinfecters and a heat recovery system are all in place.

At every stage Martin, Gaetan and their teams have been pro-actively helpful and demonstrated appropriate expertise for this build. Their strategic planning has resulted in a site that is future proofed to meet our plans.

Project Specifications

Freezer Cold Room
• External dimensions 4000mm x 4800mm x 3500mm height

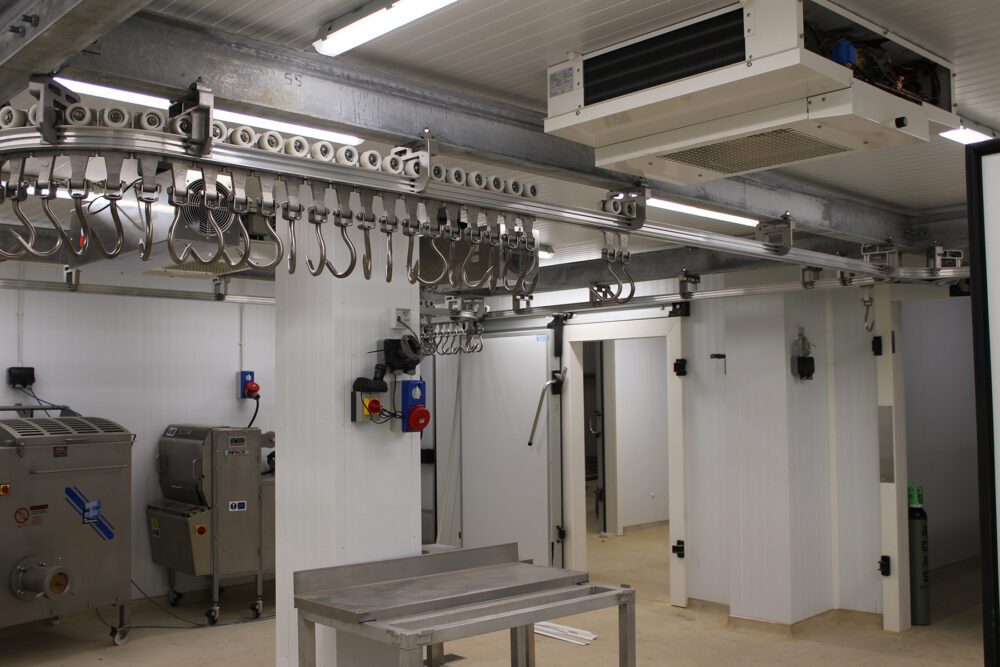

• 1no sliding door and frame c/o 1500 x 2500mm with cut out and thermal barrier to suit sliding meat rail system
• Flooring : 25mm modular heater mat, 75mm styro foam, 100mm granolithic screed complete with fast drying additive microsilica

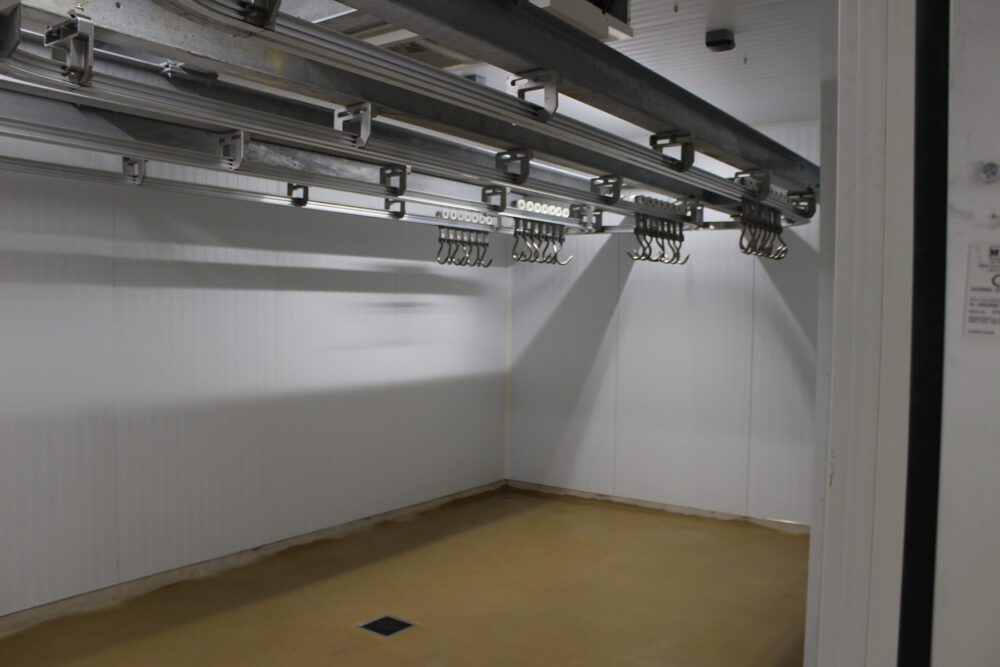

Maturation Walk-In Fridge
• External dimensions 6800mm x 4800mm x 3500mm height
• Floorless
• 1no sliding door and frame c/o 1500mm x 2500mm with cut out and thermal barrier to suit sliding meat rail system

Boxed Meats Walk-In Fridge
• External dimensions 4000mm x 4440mm x 3500mm height
• Floorless
• 1no sliding door and frame c/o 1500mm x 2500mm with cut out and thermal barrier to suit sliding meat rail system

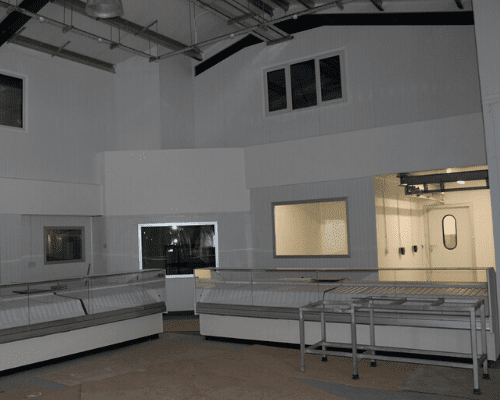

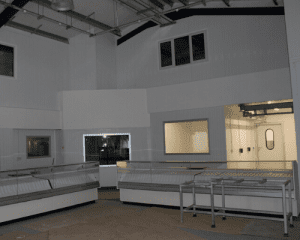

Showcase Walk-In Fridge
• External dimensions 10000mm x 4200mm x 3500mm height
• Floorless
• 1no hinged door and frame c/o 1500mm x 2500mm with cut out and thermal barrier to suit sliding meat rail system
• 1no UPVC polycarbonate window to suit c/o 1000mm x 1500mm

Cold Room with Vision Panel
• External dimensions 4400 mm x 2600mm x 2800mm height
• Floorless
• 1no hinged door and frame c/o 1000mm x 2000mm

Kitchen Cold Room
• External dimensions 5800mm x 3000mm x 2800mm height
• Floorless
• 1no hinged door and frame c/o 1000mm x 2000mm
• 1no UPVC polycarbonate window to suit c/o 1000mm x 2000mm

Bone and Poultry Room
• External dimensions 2800mm x 3300mm x 2800mm height
• Floorless
• 1no hinged door and frame c/o 1000mm x 2000mm

Bacon and Hams Chilled Store
• External dimensions 3600mm x 3300mm x 2800mm height
• Floorless
• 1no hinged door and frame c/o 1000mm x 2000mm

Kitchen Area – All Floorless

Kitchen
• External dimensions 12200mm x 3700mm x 2800mm height
• 1no hinged door and frame c/o 1000mm x 2000m
• 1no personnel door 40mm blade c/o 900mm x 2000mm

Kitchen Store
• External dimensions 1800mm x 3700mm x 2800mm height
• 1no personnel door 40mm blade c/o 900mm x 2000mm

Staff Room
• External dimensions 1400mm x 3700mm x 2800mm height
• 2 no. personal door 40mm blade c/o 900mm x 2000mm

Staff Toilet
• External dimensions 1400mm x 3700mm x 2800mm height
• 2no personnel door 40mm blade c/o 900mm x 2000mm

Disabled Toilet
• External dimensions 1700mm x 3700mm x 2800mm height
• 1no personnel door 40mm blade c/o 900mm x 2000mm

First Floor Doors + Windows
• 8no personnel door 40mm blade c/o 900mm x 2000mm
• 2no UPVC polycarbonate window to suit c/o 1000mm x 1000mm
• 1no Sliding door c/0 1500mm x 2000mm
