Dual Compartment Cold Room for Produce Wholesaler
Installation of Walk-In Fridge and Freezer in London
The team at MTCSS recently completed a cold room project, for a new customer in London, where we installed two new cold rooms – a chiller cold room and a freezer cold room – to help save space within their business and improve the fluidity of their processes.
Our customer, a produce wholesaler founded in 1932, was looking for ways to improve their business processes whilst also ensuring their products remained at a high-quality for their customers.
Overall, the MTCSS team completed this project in four weeks and our customer was happy with the final project. Let’s dive in to understand the works MTCSS carried out…
Dual Compartment Cold Room – The Plan
Our customer requested a walk-in fridge and walk-in freezer to store their products in. We decided that a dual compartment cold room would best benefit their requirements.
One cold room compartment maintained a temperature of -18°C to form the 4.2m x 9.8m x 5.9m walk-in freezer. The other compartment maintained a temperature of +4°C to form the 12.6m x 9.8m x 5.9m walk-in fridge unit, which were both storing various pallets of produce to be preserved and maintained at the ideal temperature.
Both cold rooms were insulated with a 100mm PUR quadcore hybrid panel to help them maintain the required temperatures. Insulated cold room panels provide several benefits to businesses, including; helping to improve energy efficiency, being fire resistant for extra protection (when built in a specific configuration) and being suitable for a range of different temperature-controlled projects.
Cold room flooring was installed in the walk-in freezer, and our team used 100mm granolithic concrete paired with a 75mm Styrofoam and a 25mm heat mat to provide optimum protection and withstand heavy loads.
Cold Room Door Solutions
Both cold room door solutions chosen for this installation were from industry leading door manufacturers, MTH.

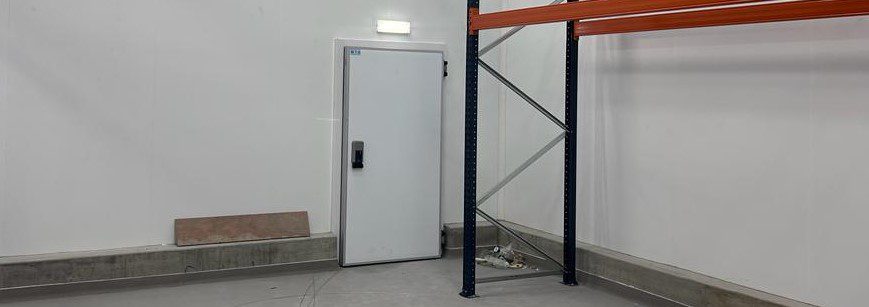

The cold room doors were installed to allow for easy access of products going in and out of the compartment. The walk-in freezer had a 2.2m x 2.8m sliding cold room door, whereas the walk-in fridge had a 2.2m x 2.8m hinged cold room door.
Choosing MTH cold room doors allowed for the high-quality insulation of our customer’s cold rooms, allowing their products to remain at the consistent temperature required whilst also helping to save energy simultaneously.
Our customer also opted for a granolithic concrete ramp and platform, installed externally to the walk-in freezer upon entrance, to support the movement of products into the compartment . Using granolithic concrete, again, is beneficial for maintaining heavy loads which is required within the food production industry.
Refrigeration Systems and Lighting Solutions
For the walk-in freezer, we selected a split refrigeration system to help maintain the negative temperatures required.
The split refrigeration system chosen for our customer was controlled via Bluetooth on an app, allowing our customers to have remote access and control over their refrigeration temperatures.

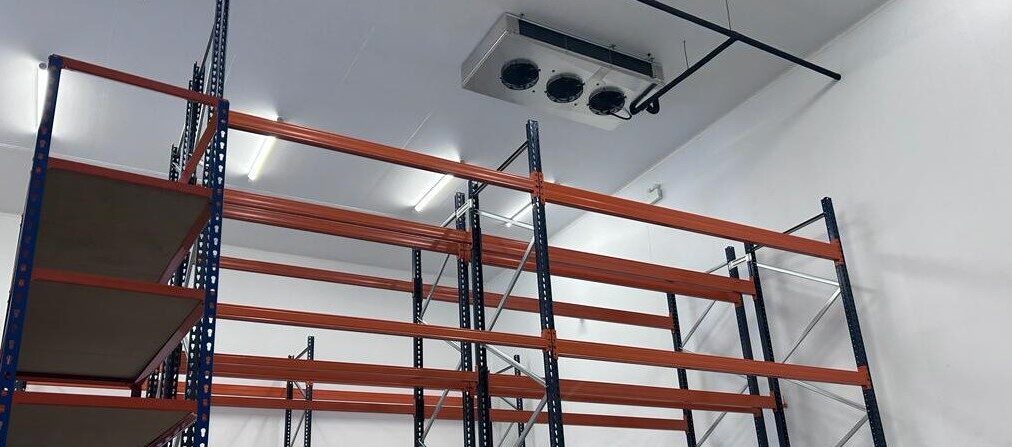

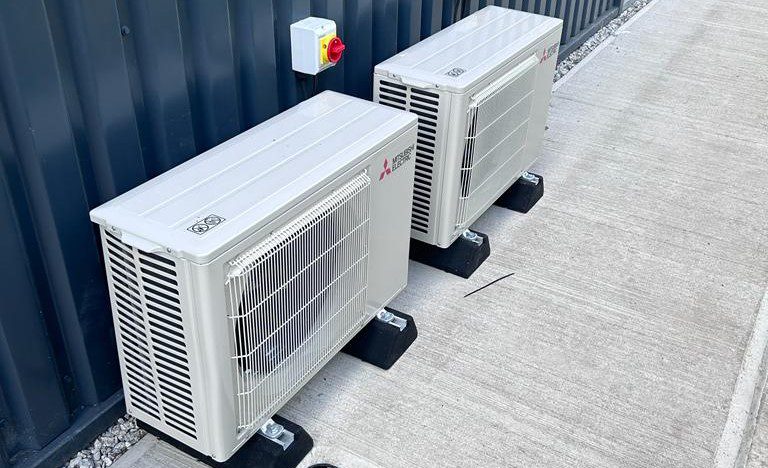

The walk-in chiller compartment had two split refrigeration systems, consisting of a condensing and evaporating unit, to maintain the chilled temperatures required for their products to remain at a high quality.
We also installed two Airo Ext Range Logger sensors in each cold room to inform our customer if the temperature increases/decreases over the set limits, as well as keeping a log of the temperatures and operating parameters.
Across the two compartments, a total of seven Titan tri proof LED lights were installed, as well as two Titan emergency lights in the event of an emergency.
On the whole, the MTCSS team installed our customer’s dual compartment cold room successfully and professionally – resulting in our customer being very happy with the completed project.
If you’d like to enquire about a bespoke cold room project, or you have any cold room requirements but you’re not sure where to start, contact our team today! We’d love to answer any questions you may have or provide a quotation for any works you require.
Email us at sales@mtcss.flywheelsites.com, call us on 01886 833381 or fill in an enquiry form below!
PROJECT SPECIFICATIONS –
Industry: Food Production / Wholesale
Location: London
Compartment 1, Freezer –
- 4.2m x 9.8m x 5.9m
- 216m3
- 100mm PIR Quadcore hybrid panel
- 2.4m wide granolithic concrete ramp and platform
- 150mm x 150mm concrete kerb protection to all internal walls
- 1 x condensing unit, 1 x evaporator unit with Bluetooth control panel
- 2 x Airo Sensor Temperature Only Ext Range Loggers
Compartment 2, Chiller –
- 12.6m x 9.8m x 5.9m
- 696m3
- 100mm PIR Quadcore hybrid panel
- 150mm x 150mm concrete kerb protection to all internal walls
- 2.2m x 2.8m insulated curtains
- 2 x condensing units, 2 x evaporator eco dual discharge
- 2 x Airo Sensor Temperature Only Ext Range Loggers
