High Speed Doors and Fire Rated Door Solutions in Swindon
Range of High Speed Doors and Fire Rated Doors for a Cleanroom Environment
MTCSS can supply and install an extensive range of cold room doors solutions – including refrigerated doors for walk-in cold rooms and high-speed rapid rise doors for a wide range of specifications, applications and industries.
Our expert team’s experience, combined with our industry knowledge, means we understand how to design and supply bespoke cold storage solutions for you, whilst adhering to your specific business/industry requirements. And this is exactly what we did recently for our customer with a project based in Swindon.
The MTCSS team completed a multi-phase project with an array of doors from the MTCSS door range, including 6 high speed doors, 2 fire rated roller shutters and 24 fire rated steel doors. We selected the perfect door solutions for the bio-technology company’s requirements.
Whether you’re after a singular chiller cold room door for your restaurant, or a range of different high speed and fire-rated doors for your warehouse – MTCSS can find the perfect solution to suit you!
The project was separated into three phases: high speed rapid roll door installation, fire rated roller shutter installation and the fire rated steel door installation.

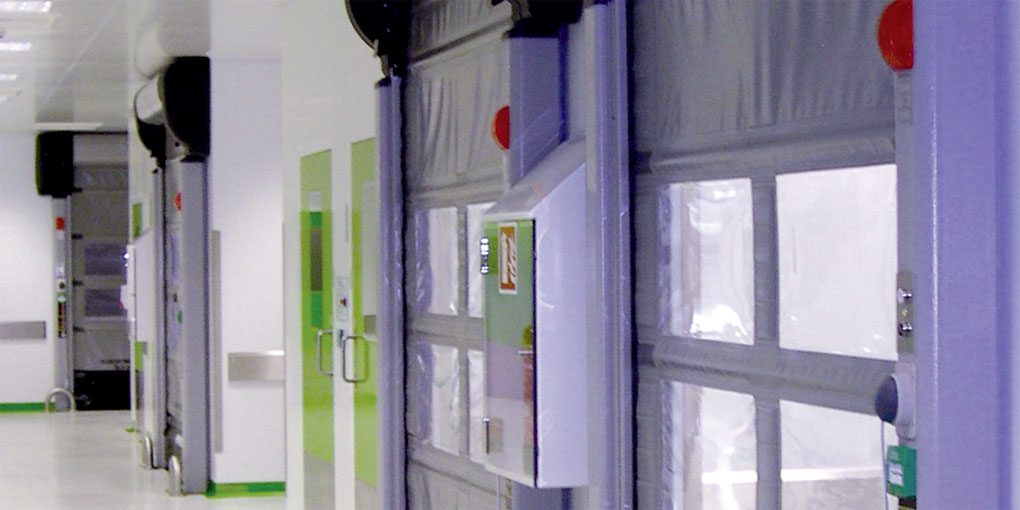

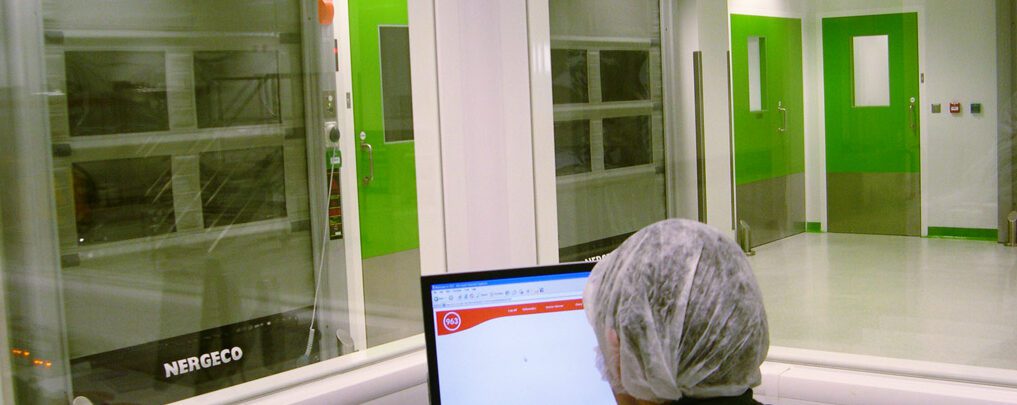

MTCSS supplied and installed R-Labo 5 Nergeco high speed doors for the first phase. The R-Labo 5 model is a multi-composite, high-performance door that enhances the sealing and pressure resistance for your temperature-controlled room.
Nergeco R-Labo 5 high-speed doors are the perfect solution for clean environments and have been developed with this in mind – with features including:
- Made from multi-composite materials – smooth surface and weld-free making it compliant with clean room requirements, in addition to being corrosion and paint free
- Just-in-time opening cycle – the door opens and closes to reduce exposure time and reduce energy costs
- Sealing and resistance to pressure differences – designed to operate under pressure differences and to reduce leakage rate
The fire-rating for these doors varied from between 30 minutes and 120 minutes dependent on the client’s requirements. They included a grey Trellebor self-adhesive door seal to create a smoke seal – this is to help prevent the spread of any smoke or fire from entering the room due the tight seal formed around the door.
Another advantage of the self-adhesive door seal is that it can also help to retain the temperature within your temperature-controlled rooms – preventing any energy from being wasted.
Our customer decided to customise their steel fire-rated doors by installing vision panels into a selection of the doors. This is ensure the employees can easily see through the door and into the next room before opening.
Furthermore, windows can also be used within cleanroom areas to see the processes being carried inside – helping to reduce the risk of contamination.
The features of the steel fire-rated doors supplied and installed by MTCSS included:
- 30 minute to 120 minute fire ratings
- Brushed stainless steel kick plates
- ‘Fire door keep shut’ signs internally and externally
- ‘Fire escape keep clear’ signs
- Push bars with opening signs
- Vision panels / windows in various sizes, in Pyroguard and double-glazed dependent on fire rating

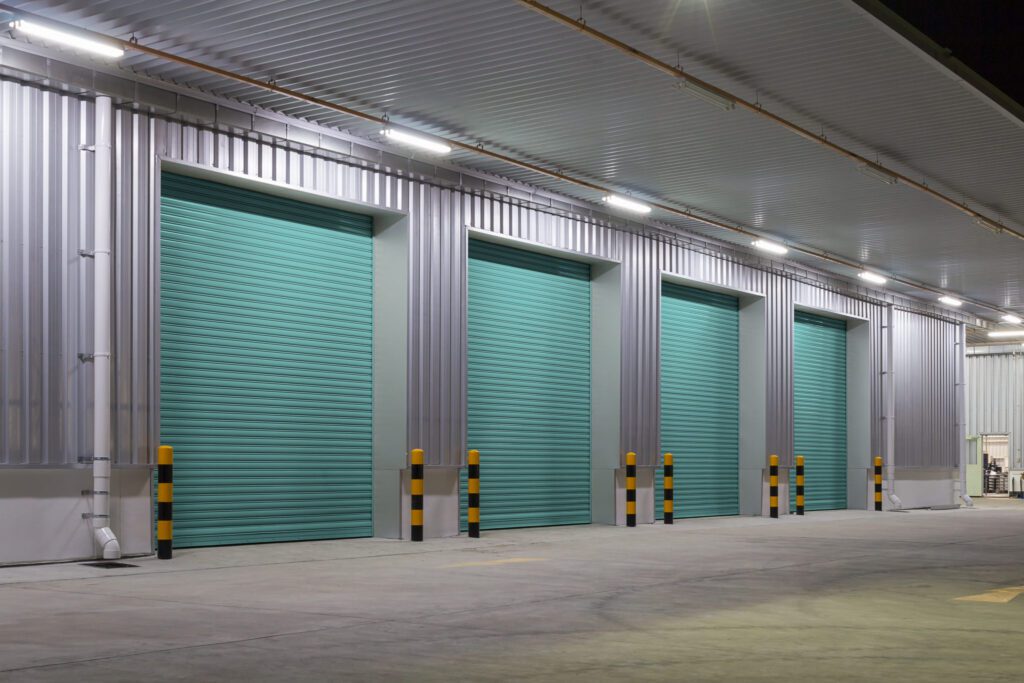

The final phase of the project was comprised of MTCSS installing 2no fire-rated roller shutter doors, with a galvanised finish. They had a 120-minute fire shutter and clear opening, along with a push button station and a safety break.
The fire-rated roller shutter doors supplied by MTCSS included the following features:
• Full covering canopy
• Push button station for opening operations
• PP400 auto reset
• Safety break to ensure the safety of employees
When dealing with roller shutter doors and high-speed doors, employee safety is a huge factor that must be considered – emphasising the usefulness of a safety break.
By the end of the project, MTCSS had supplied and installed a total of 32 doors; 6 high speed doors, 2 fire rated roller shutters and 24 fire rated steel doors within the required time frame. Each door offered various benefits to adhere to our customer’s requirements.
We can supply and install a variety of doors to suit your business and its requirements and needs, as well as any standards or certifications that it must adhere to.
If you’d like any more information on fire-rated doors or high-speed roller shutter doors, contact MTCSS today! Email us at sales@mtcss.flywheelsites.com , call us on 01886 833381 or fill in an enquiry form here!
Project Profile
Industry: Pharmaceutical
Location: Swindon
Project Specifications:
Phase 1 – 6no Nergeco High-Speed Doors:
• 2no R-Labo 5: 2100mm x 3000mm
• 2no R-Labo 5: 1600mm x 2500mm
• 2no R-Labo 5: 1600mm x 2200mm
Phase 2 – 2no Fire Roller Shutter Doors
• 2100mm x 3000mm clear opening
• Push button station for opening systems
• Safety break
• 120-minute fire shutter
Phase 3 – 24no Steel Fire-Rated Doors
• 2no hinged doors with 120-minute fire rating – 1110mm x 2200mm
• 4no hinged doors with 30-minute fire rating – 1110mm x 2200mm
• 9no hinged doors with 60-minute fire rating – 1110mm x 2200mm
• 6no hinged doors – 1110mm x 2200mm and 1210mm x 2200mm
• 2no double-hinged doors with 30-minute fire rating – 1860mm x 2400mm
• 1no double-hinged door – 2010mm x 2400mm
