Internal Freezer Cold Room For Fry Fresh Edible Oils
MTCSS can help you build a cold storage solution to improve your business processes and optimise business efficiency, whilst fitting your exact requirements.
Freezer cold rooms are an excellent way to protect, store and support your business’ products and offerings.
Following our previous two installations, our existing customer in Wrexham enquired with the MTCSS team to help support their business needs.
Fry Fresh Edible Oils requested a second freezer cold room to store their products on pallets, as well as the installation of air conditioning for two of their offices.
Freezer Cold Room – Construction
After assessing the site and project requirements, MTCSS got to work with the installation of their new freezer cold room and air conditioning systems.

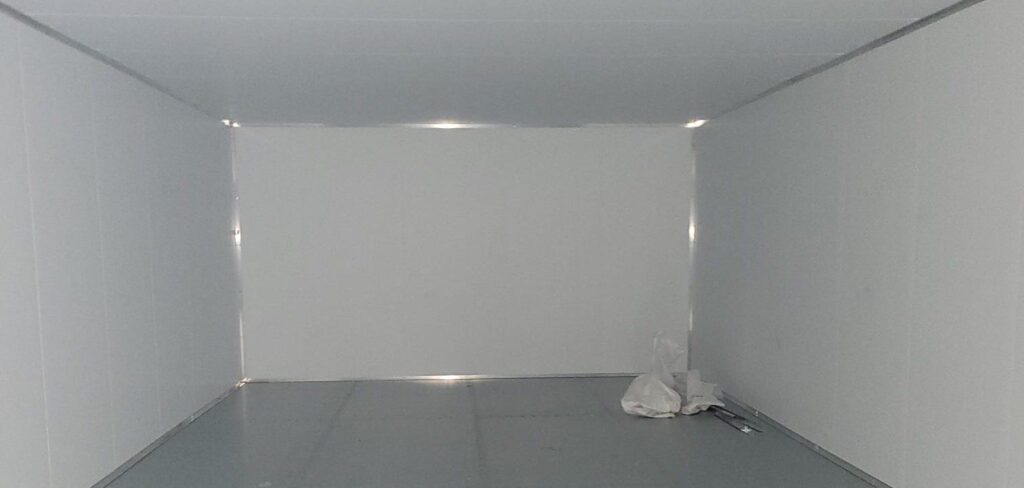

Their new freezer cold room measured externally at 13.2m x 5m x 3m, with a volume of 183m3 , maintaining an internal temperature of -20°C to support their product requirements.
We used 100mm Quadcore insulated cold room panels to construct the walls and ceiling of the cold room, finished in a white food safe laminate to ensure the cold room complied with the health and safety requirements of the food production industry.
Because Fry Fresh requested a freezer cold room, a flooring solution was required to prevent frost heave and ice build-up.
They opted for 80mm PUR base panels with 12mm plywood foamed in, supported by a 2mm rigidized galv floor plate and a 25mm modular heater mat – allowing them to move stock in and out of the cold room effectively without having to worry about the weight of the product deteriorating the flooring over time.
Cold Room Door Installation

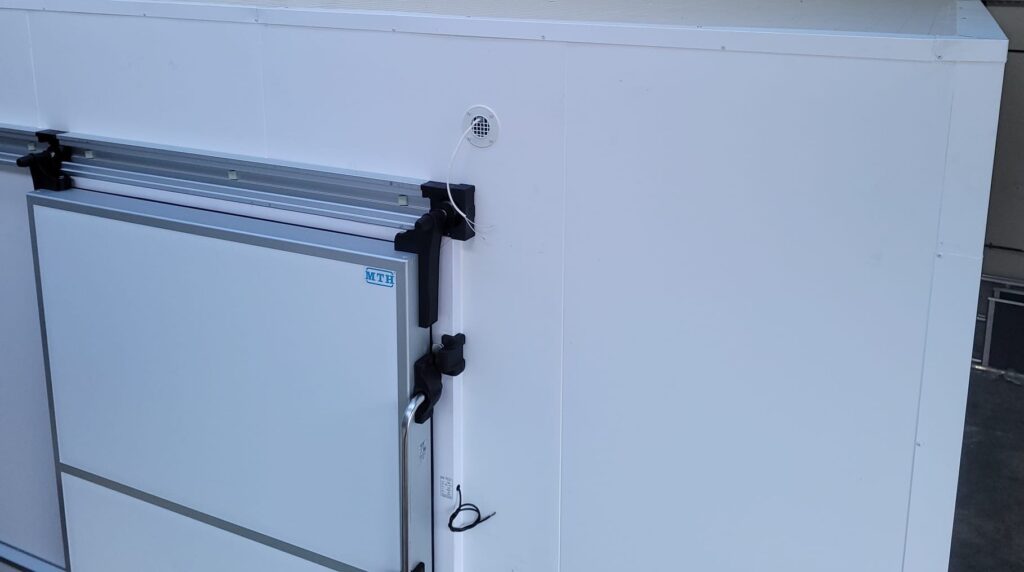

For ease of access when moving products in/out of the freezer cold room, we installed a 1.5m x 2.1m MTH sliding cold room door that was finished internally and externally in white food safe laminate to keep in line with health and safety regulations.
MTH sliding doors are the perfect cold room door solution for industries that require larger door openings and access (EG, for forklift or pallet access), as well as the fact they can be customised to suit your specific requirements – benefitting your business processes in the long run.
Fry Fresh would be transporting their products into the freezer cold room via pallets, so MTH’s sliding door was the ideal option to align with their processes.
Refrigeration Systems and Air Conditioning
When it came to choosing the refrigeration systems, we had to ensure it could support the negative temperature range due to product-specific temperature requirements.
Our engineers installed a 3-phase Danfoss compressor, a Kelvion evaporator, and a control panel for both – allowing Fry Fresh to control and monitor the temperatures in the freezer cold room.
Alongside the refrigeration in the freezer cold room, we installed a total of three Midea air conditioning systems into their main office and small office.
The main office had an internal air conditioning system and a condensing unit installed, and the small office had one wall-mounted air conditioning systems installed to meet their employee requirements.
Temperature Sensors and Lighting Solutions
For additional security over the temperature range in the freezer cold room, we also installed three Airo sensor loggers to notify Fry Fresh via email or text about any temperature fluctuations – allowing them to act promptly if required.
We also installed a total of four Titan LED lighting strips to illuminate the freezer cold room and allow their employees to navigate around the freezer cold room, whilst also minimizing the amount of heat gain from the lights.
After two weeks, the project was completed and Fry Fresh were pleased with the finished installation of their new freezer cold room and air conditioning systems.
If you think your business could benefit from a freezer cold room, or a high-quality bespoke cold storage solution to support your processes and requirements, get in contact with the MTCSS experts today!
Email us at sales@mtcss.flywheelsites.com, call us on 01886 833 381 (sales) or fill in an enquiry form here.
Project Profile
Industry: Food & Waste Management
Location: Wrexham
Project Specifications:
-20°C Freezer Cold Room
- 13,200mm x 5200mm x 3000mm external dims
- Volume: 183m3
- 100mm Quadcore food safe panels
- 25mm modular heater mat, 80mm PUR base panels with 12mm plywood foamed in, 2mm rigidized galv floor plate
- 1500mm x 2100mm MTH sliding door
- Airo sensor loggers
- Danfoss 3-phase compressor, R452A
- Kelvion evaporator
- GB control panel
Main Office
- 2no Midea internal air conditioning system, wall-mounted, 8kw
- 1no Midea condensing unit, 8kw
Small Office
- 1no Midea wall-mounted air conditioning systems, 2.5kw
