Removal and Installation of Pharmaceutical Cold Rooms
Pharmaceutical Cold Rooms for Biotechnology Company
Pharmaceutical and medical industries must adhere to strict regulations and procedures – so they require solutions that provide them with high levels of control over their products . This is exactly what MTCSS recently did for our customer in Nottingham – designed a bespoke cold room solution to suit their biotechnology business.
Cold Room Requirements
Our customer required the removal and disposal of their existing cold rooms, as well as the installation of two new cold rooms that were suitable for their pharmaceutical processes.
Because they were a biotechnology company, our team took into consideration the in depth specifications of the industry. MTCSS conducted a site survey prior to designing our customer’s cold room solution, to ensure we understood the works required and to plan the project in detail.
MTCSS Cold Room Solution
MTCSS designed a dual compartment cold room that streamlined their requirements for two chiller cold rooms whilst maximising their space.
Before installing the new cold rooms, the MTCSS team had to dismantle, remove ,and dispose of the existing cold rooms in line with legislation. Both of the new cold rooms were walk-in chiller compartments, with a volume of 11m3 each and maintained a temperature of 4°C to adhere to their product requirements.
Cold Room Panel Systems
The 100mm cold room panel systems were chosen to conserve energy (as instructed by our customer) and were constructed from thermally efficient Kingspan Quadcore IPN cold room panels.
Cold Room Doors
MTCSS installed two hinged chiller cold room doors onto the cold room panels – one door was installed on each part of the dual compartment cold room. Both of the cold room doors had a handle on the inside of the door, as well as the outside, as a safety feature in case of an emergency.
Refrigeration Systems
MTCSS installed a split refrigeration system for our customer with the refrigerant R448A, which has a GWP (global warming potential) of 1387 and 0 ODP (ozone depletion potential). This refrigerant had less of an impact on the environment following their refrigeration systems being commissioned – aligning with our customer’s requirement to reduce their impact on the environment.
To ensure high levels of control, there was also a control panel provided to allow our customers greater control over their refrigeration and lighting solutions.
Customisable Cold Room Elements

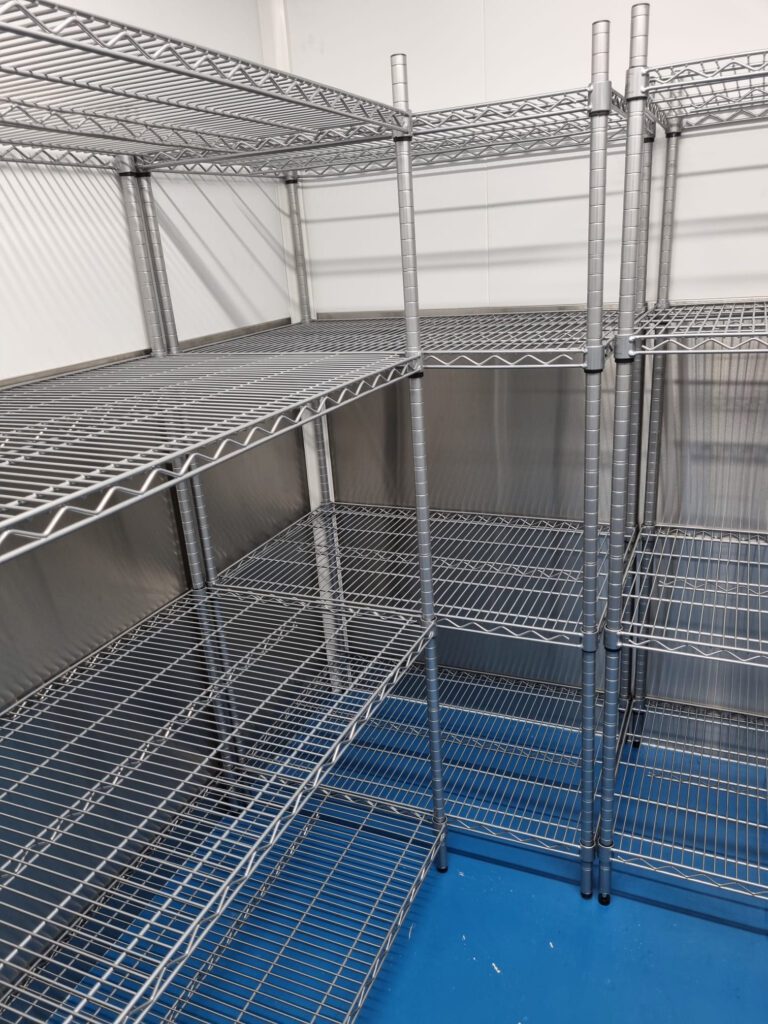

Because our customers were storing their pharmaceutical products in glass vials, we provided them with suitable racking solutions – we installed three shelving units in each chiller cold room compartment that were covered in an antibacterial epoxy coating with a 10-year anti-microbial guarantee to prevent any contamination.
In addition to relocating and reconnecting our customers’ data loggers (used to measure several of the cold room’s parameters) from the existing cold rooms to the new cold rooms to ensure continuity with their pharmaceutical requirements.
The MTCSS team also installed trolley plates to the cold room walls, both internally and externally, to prevent any potential impact damage from pallet trucks.
The cold room was designed with LED lighting solutions, selected to avoid increase in internal temperature from heat gain, and we fitted an emergency light for safety.
Bespoke Cold Room Solutions by MTCSS
MTCSS understand the importance of high-quality cold rooms for your business requirements, so you can rest assured knowing that we will take every consideration into account when designing a cold room solution for your business.
If you’d like to know more about how MTCSS can supply and install a cold room solution for your pharmaceutical business, or you’re looking for a dual compartment cold room, get in contact with our experts today!
Call us on 01886 833382, email us at sales@mtcss.flywheelsites.com or fill in an enquiry form here!
