Chiller Cold Room Replacement for Farming Business
Agriculture Walk-In Chiller Cold Room
At MTCSS we are specialists when it comes to temperature controlled projects, from walk in chillers and freezers to ambient areas – our team has the knowledge and expertise to design and build a cold storage solution to enhance your day to day and stand the test of time.
But not only do we build new cold rooms, we will also remove and decommission existing cold rooms – which is what the MTCSS team did at a farm in Worcestershire.
Our customer required a replacement cold room to increase the capacity of the walk in chiller and to ensure the cold room would be running to optimal efficiency. The existing cold room was decommissioned, removed and disposed of according to the appropriate regulations.
The MTCSS team then built a new chiller cold room with a Nergeco high speed chiller door as the main access point to the cold room, with a single hinged door for pedestrian access.

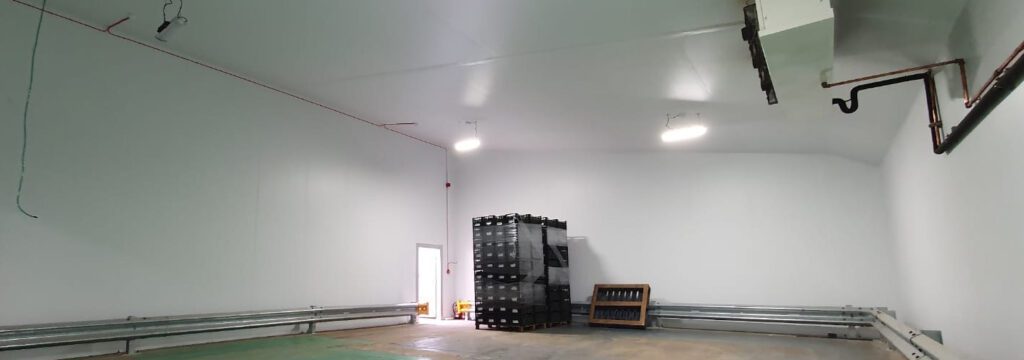

Above : Chiller Cold Room with Refrigeration Unit
Right : Nergeco Chill-5 High Speed Door
Why Choose a Nergeco High Speed Door?
MTCSS installed a 2.5m x 3m Nergeco Chill-5 high speed rapid roll door to allow for forklift and vehicle access in and out of the chiller cold room. The pull cord operated door means that the high speed door opens when the cord is pulled, then closes automatically within a set period of time – allowing for easy access in and out of the cold room, in addition to the door being open for the minimum amount of time possible.
The 11.9m x 10.2m chiller cold room was built from 100mm Kingspan Quadcore panel – with a split refrigeration system installed to maintain internal temperatures of 3°C. The replacement chiller cold room was used to store fruit and vegetable produce, so consistent internal temperatures are vital to ensure the longevity and quality of the products.
Project Specifications
• Chiller dimensions : 11900mm x 10200mm x 5500mm
• 100mm Kingspan Quadcore panel
• 1no standard 900mm x 2000mm c/o Hinged door
• 1no Nergeco C Chill-5 High Speed Door 2500mm x 3000mm
If you would like to find out more about cold room removal and disposal, or cold room design and build by MTCSS, get in touch with our team! Call us on 01886 833381, email us at sales@mtcss.flywheelsites.com or fill in an enquiry form here.
