Pharmaceutical Walk-In Fridge In Somerset
Walk-In Fridge Installation for Pharmaceutical Supply Store
Pharmaceutical industries must adhere to specific requirements for their products and processes to ensure everything has a high level of control and is suitable for consumption. Our customer in Somerset was after exactly that – a pharmaceutical temperature-controlled room to store their products.
Our customer required a new temperature-controlled pharmaceutical area within their warehouse, so the MTCSS team assessed their requirements to design and install a cold room solution bespoke to them.
MTCSS’ Cold Room Solution
The MTCSS team designed a walk-in fridge for our customers to fit their requirements – they needed a dedicated, refrigerated space to store their pharmaceutical supplies, allowing them to remain at the highest quality.
Walk-In Fridge – Structure

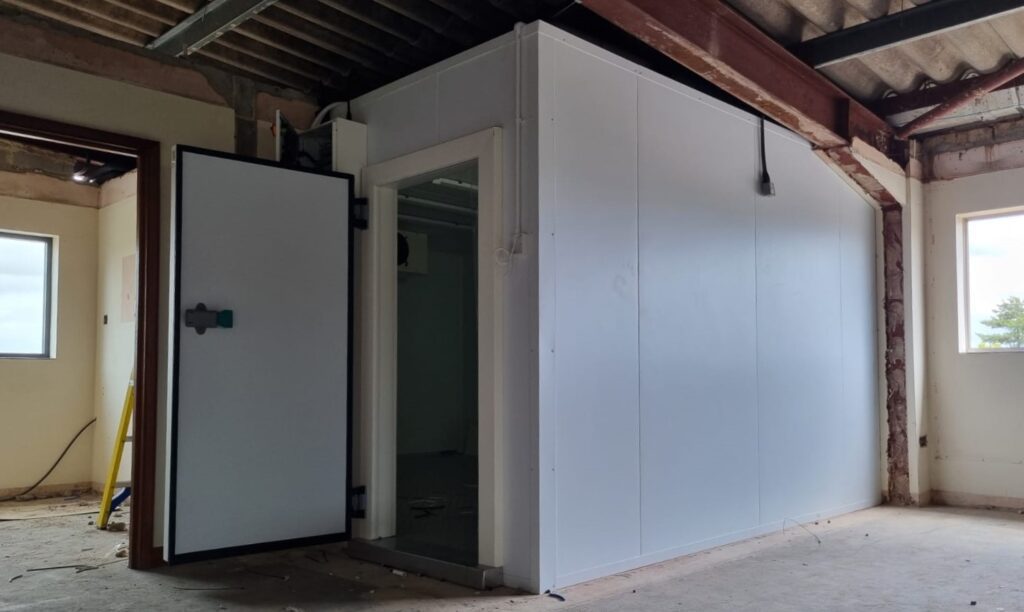

We installed a walk-in fridge within their existing warehouse, measuring 4.9m x 3.7m x 2.4m with a volume of 38m3. Constructed from 80mm PIR Quadcore hybrid cold room panels, their walk-in fridge was reliably insulated to maintain the chilled temperatures required.
Both the cold room walls and ceilings had a food safe finish internally but were externally finished in grey to match the rest of their warehouse and aesthetic – whilst also maintaining high levels of hygiene to prevent contamination.
For the flooring solution, we installed a modular cold room floor comprised from 80mm PUR panels with 12mm plywood and a 5-bar nonslip finish. This flooring solution was chosen to provide a durable, high-quality solution and to protect any of their employees from slipping when transporting materials in and out of the cold room.
Cold Room Doors
Once the main structure of the walk-in fridge was constructed, it was time to install the cold room doors and refrigeration systems.
Our customer requested an 800mm x 1800mm hinged cold room door, from industry leaders MTH, to allow them access in and out of the walk-in fridge. Coated in a metal sheet suitable for food applications, allowing the control of hygiene, a hinged cold room door from MTH was the perfect solution for our customer.
The hinged cold room door was also finished in RAL 9010, the same colour as the cold room walls and ceilings, to allow for consistency throughout the build.
Refrigeration Systems

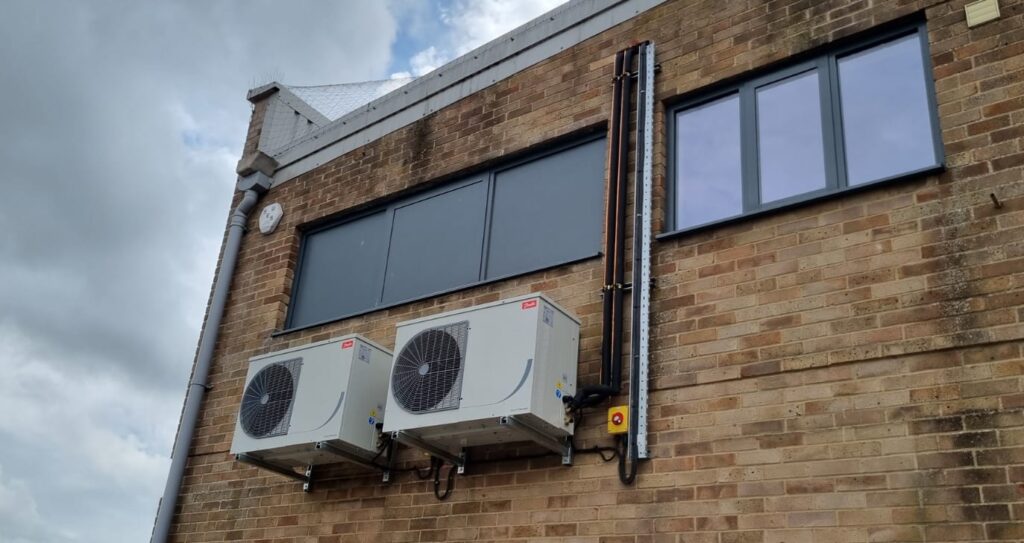

The desired temperature for the walk-in fridge was 2°C. We opted for a split refrigeration system, comprised of a condenser and evaporator unit to support our customers’ temperature requirements.
In the event of a power outage or refrigeration system fail, MTCSS installed 100% back-up refrigeration with a changeover panel for our customers – so that in an emergency their products are still reliably refrigerated!
This additional benefit of back-up refrigeration gives you as a customer more confidence that your cold room can still run efficiently in the event of an emergency!
Cold Room Lighting

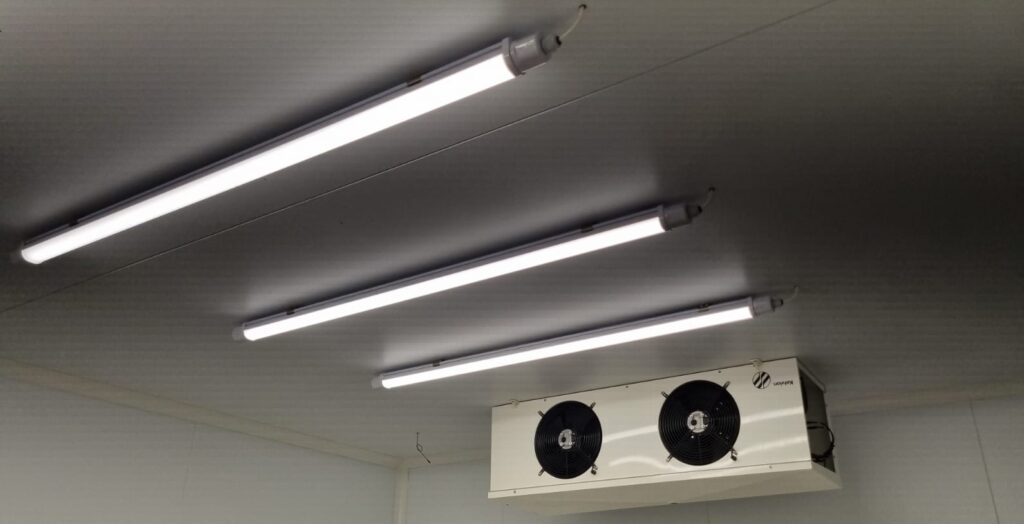

Finally, we installed the lighting solutions – opting to install four sets of titan tri proof LED lighting to efficiently illuminate their walk-in fridge and minimise any heat from altering the internal temperature.
Completed in 10 working days, our customers were very happy with the finished project, and their walk-in fridge is now being used for internal processes that benefit their customers and business.
If you think your company could benefit from a walk-in fridge, or a cold room solution, then get in touch with our experts today! Alternatively, if you’re not sure what cold room solution your business needs then our team can visit your site to understand your requirements better.
For more information on cold room installations, contact our team via email at sales@mtcss.flywheelsites.com, call us on 01886 833381 or fill in an enquiry form here!
Project Specifications –
Industry: Pharmaceutical Supplier / Wholesale
Location: Somerset
Walk-In Fridge
- Pharmaceutical chiller
- 4911mm x 3708mm x 2400mm external dimensions
- 28m3 internal volume
- 80mm Quadcore hybrid insulated panels
- Modular flooring, 80mm PUR panel, 12mm ply internally, 2mm 5-bar nonslip finish
- 800mm x 1800mm hinged cold room door
- 4 x 1500mm LED titan tri proof lighting strips
- Optyma condensing unit, Searle electric defrost evaporator (with 100% back up and changeover panel)
